Schulz Premium Series Two Stage Heavy Duty Air Compressor

SKU P580VL30X-1
Original price $5,717.00 - Original price $10,764.00
Original price
$5,717.00
$5,717.00 - $10,764.00
Current price $5,717.00
Horsepower | Airflow: 5 HP | 20 CFM
Phase | Voltage: Single Phase | 230V
Safe and Secure Checkout Badge
Why Buy From Us?

Fast Response & Service Times & FREE Shipping: You will always reach a real person.

Real, Friendly, Expert Staff Trusted By Hundreds Of Contractors and Workshops!

Price Match Guarantee Ensures You'll Receive The Best Deal Online Even After Your Purchase.

Authorized Retailer For All Brands: Only new warrantied equipment for peace of mind.

Shipping & Handling Time For Schulz Compressor

Handling Time: 2-4 Days.

Shipping Time: 2-8 Days.

Our goal is to get your order to you as quickly as possible. This item ships to all States of the contiguous U.S.A (lower 48). Please note that all shipments over 100lbs go by LTL freight. For more information check out our Shipping Policy.

Cancellation/Return Policy For Schulz Compressor

Return Policy: Schulz Compressors can be returned in new condition (unopened boxes) within 30 days.

Fees: 25% restocking fee and customer pays for return shipping.

Damages must be reported within 5 days of receiving the product.

Cancelled orders that have lift are subject to $300 and the return shipping fees.

Rerouting a shipped order are subject to $250 and the additional freight charges.

Any order can be canceled within 24 hours of payment.

After 24 hours, most orders will be packed and placed for pickup by the shipping carriers. Once picked up, the item will be considered shipped.

Custom, Built-To-Order, on demand products cannot be canceled or refunded after 24 hours, as these products are put into production specifically for your order.

Damaged Items:

All orders are protected by the manufacturer's warranty. We will repair, or replace any item damaged during shipment or faulty upon arrival as long as the documentation is provided.

Support Agent

Questions? We Are Here To Help!


Call Us Now:  725-444-8355
Instant Live Chat:  Click to Chat
Mon-Fri: 9am-7pm PST

Two Stage Vertical Air Compressor From Schulz Premium Series

This two-stage air compressor series is designed for shops that require steady pressure across vertical and horizontal tank configurations. Standard equipment includes a mounted magnetic starter, metal intake filter, and beltguard aftercooler for controlled airflow and dependable operation.

Built-in protections such as low-oil shutdown, vibration pads, tank discharge valve, and electronic timed auto drain support consistent daily use. Each unit is backed by a two-year pump warranty for added peace of mind.

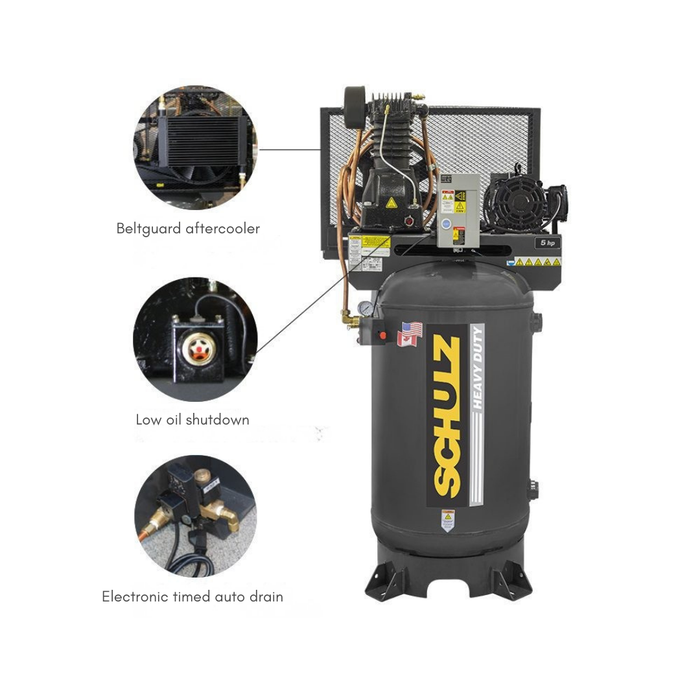

Schulz Premium Series two stage heavy duty vertical air compressor with beltguard aftercooler and auto drain

Schulz Compressor Two Stage Industrial Air Compressor

  • Mounted Magnetic Starter – Pre-wired starter with cable simplifies electrical connection and startup.
  • Large Metal Intake Filter – Helps keep contaminants out for smoother air intake and steady operation.
  • Tank Discharge Valve – Allows easy removal of moisture buildup from the tank.
  • Beltguard Aftercooler – Mounted on the belt protector to help reduce discharge air temperature.
  • Low Oil Shutdown – Automatically stops operation when oil level drops to protect internal components.
  • Electronic Timed Auto Drain – Periodically releases condensate without manual draining.

Power your operation with the Schulz Premium Series Two Stage Heavy Duty Air Compressor. Designed to handle continuous air requirements in commercial and industrial settings.

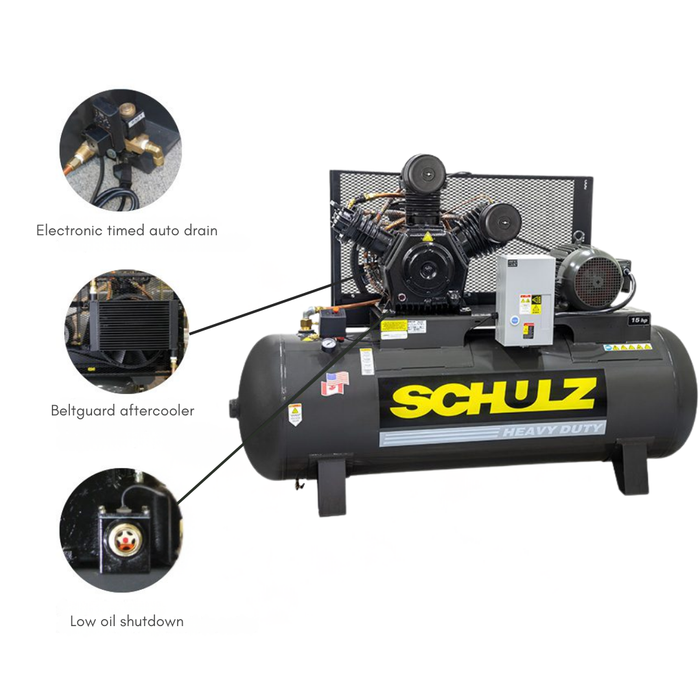

Heavy duty Schulz two stage air compressor 15 HP with electronic timed auto drain and beltguard

Specs of Premium Series Schulz Air Compressor

Model P580VL30X-1 P580VL30X-3 P7580VL30X-1 P7580VL30X-3 P10120HW40X-3 P15120HW60X-3 P20120HLV80BR
Code 932.9361-0P 932.9362-0P 932.9335-1P 932.9322-0P 932.9344-0P 932.9337-0P 934.7452-0P
Pump Model MSL30 MAX MSL30 MAX MSL30 MAX MSL30 MAX MSW40 MAX MSW60 MAX MSLV80 BR
Displacement (CFM) 20 20 30 30 40 60 80
Motor (HP) 5 5 7.5 7.5 10 15 20
Phase Single Three Single Three Three Three Three
Voltage 230 208-230/460 230 208-230/460 208-230/460 208-230/460 208-230/460
Pump RPM 534 534 820 820 710 1065 1065
Tank Size 80 gal 80 gal 80 gal 80 gal 120 gal 120 gal 120 gal
Tank Orientation Vertical Vertical Vertical Vertical Horizontal Horizontal Horizontal
Weight (lb) 515 515 578 578 710 844 1065
FAD (CFM @ Max PSI) 15.9 15.9 21.6 21.6 28 45.2 58

Shared Specs Across the Two Stage Heavy Duty Air Compressor Line

Specification Details
Max Working Pressure 175 PSI
Compressor Type Two Stage
Starter Mounted and wired magnetic starter
Intake Large metal intake filter
Aftercooler Beltguard mounted aftercooler
Oil Protection Low oil shutdown
Condensate Control Electronic timed auto drain
Vibration Control Integrated vibration pads
Tank Certification ASME coded
Pump Warranty 2 years
