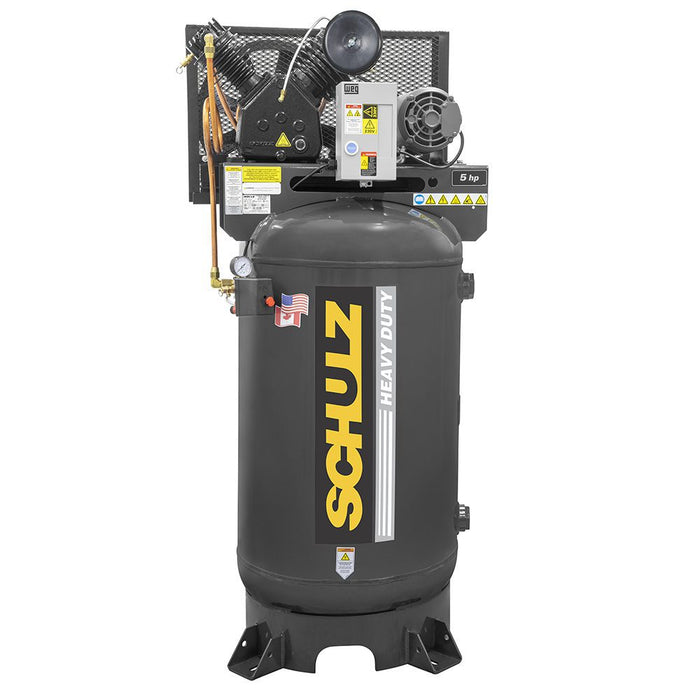

Schulz V Series two stage heavy duty air compressor with vertical steel tank, 5 HP motor, industrial piston pump, and mounted control panel.

Schulz V Series Two Stage Heavy Duty Air Compressor

SKU 580VV20X-1
$3,051.00 - $8,169.00
$3,213.00
$3,051.00 - $8,169.00
$3,213.00
Horsepower: 5 HP
Phase | Voltage: Single | 230V
Tank Style: Vertical
Safe and Secure Checkout Badge
Why Buy From Us?

☑ Fast Response & Service Times & FREE Shipping: You will always reach a real person.

☑ Real, Friendly, Expert Staff Trusted By Hundreds Of Contractors and Workshops!

☑ Price Match Guarantee Ensures You'll Receive The Best Deal Online Even After Your Purchase.

☑ Authorized Retailer For All Brands: Only new warrantied equipment for peace of mind.

Shipping & Handling Time For Schulz Compressor

Handling Time: 2-4 Days.

Shipping Time: 2-8 Days.

Our goal is to get your order to you as quickly as possible. This item ships to all States of the contiguous U.S.A (lower 48). Please note that all shipments over 100lbs go by LTL freight. For more information check out our Shipping Policy.

Cancellation/Return Policy For Schulz Compressor

Return Policy: Schulz Compressors can be returned in new condition (unopened boxes) within 30 days.

Fees: 25% restocking fee and customer pays for return shipping.

Damages must be reported within 5 days of receiving the product.

Cancelled orders that have lift are subject to $300 and the return shipping fees.

Rerouting a shipped order are subject to $250 and the additional freight charges.

Any order can be canceled within 24 hours of payment.

After 24 hours, most orders will be packed and placed for pickup by the shipping carriers. Once picked up, the item will be considered shipped.

Custom, Built-To-Order, on demand products cannot be canceled or refunded after 24 hours, as these products are put into production specifically for your order.

Damaged Items:

All orders are protected by the manufacturer's warranty. We will repair, or replace any item damaged during shipment or faulty upon arrival as long as the documentation is provided.

Support Agent

Questions? We Are Here To Help!


Call Us Now:  725-444-8355
Instant Live Chat:  Click to Chat
Mon-Fri: 9am-7pm PST

Industrial Air Performance With Schulz Compressor V Series

Designed for demanding shop use, this heavy duty air compressor uses cast iron construction, a low RPM multi piston pump, and balanced pulleys for steady air delivery. Automatic start stop control helps maintain consistent performance during extended operation.

An ASME rated tank with safety valves manages pressure, while TEFC motors, magnetic starters, and oversized check valves regulate airflow. Easy belt access and a manual condensate drain support routine service.

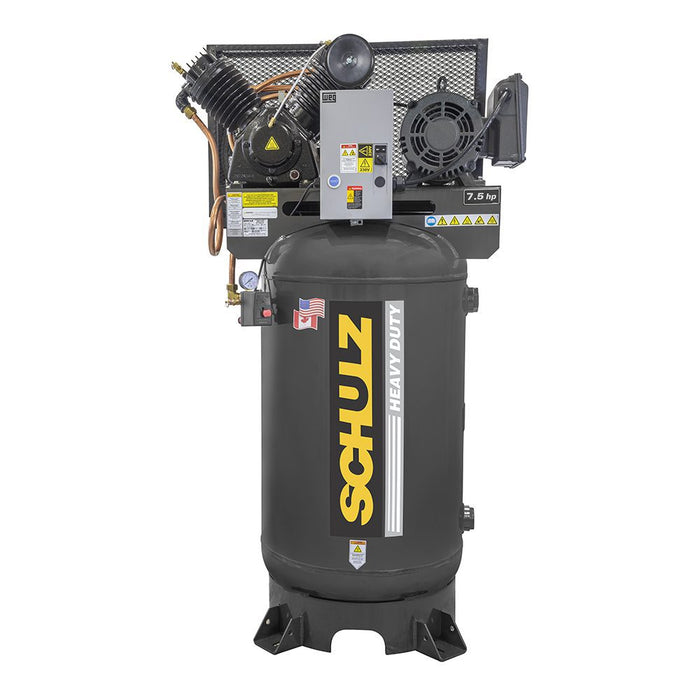

Vertical Schulz V Series two stage air compressor featuring a 7.5 HP motor, heavy duty tank, and industrial piston design.

Schulz V Series Two Stage Air Compressor For High Air Demand

  • Cast Iron Pump Construction – Supports steady air output and reliable operation in demanding shop environments.
  • Low RPM Multi Piston Design – Helps manage operating temperature while maintaining consistent compressed air delivery.
  • Automatic Start Stop Control – Regulates pressure by cycling operation based on tank demand.
  • ASME Rated Tank And Safety Valves – Supports controlled pressure management during extended use.
  • TEFC Motor With Magnetic Starter – Supports stable motor operation in enclosed shop settings.
  • Easy Belt Access And Manual Drain – Allows faster belt adjustment and routine condensate removal.

The Schulz V Series Two Stage Heavy Duty Air Compressor is suited for workshops that require consistent airflow and controlled pressure for daily air tool use. Choose this unit to support reliable shop operations and sustained performance.

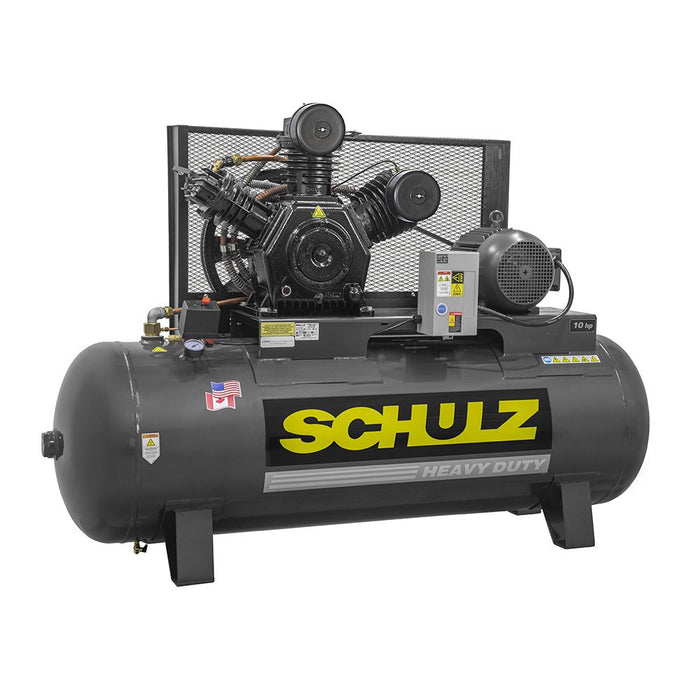

Horizontal Schulz two stage heavy duty air compressor equipped with a 10 HP motor and high-capacity steel tank.

Specs of V Series Heavy Duty Air Compressor

Model 580VV20X-1 580VV20X-3 580HV20X-1 580HV20X-3 7580VV30X-1 7580VV30X-3 7580HV30X-1 7580HV30X-3 10120HW40X-3 10120VW40X-3 15120HW60X-3 15120VW60X-3 20120HW80X
Mounting Vertical Vertical Horizontal Horizontal Vertical Vertical Horizontal Horizontal Horizontal Vertical Horizontal Vertical Horizontal
Phase Single Three Single Three Single Three Single Three Three Three Three Three Three
Voltage 230 208–230/460 230 208–230/460 230 208–230/460 230 208–230/460 208–230/460 208–230/460 208–230/460 208–230/460 208–230/460
Horsepower 5 HP 5 HP 5 HP 5 HP 7.5 HP 7.5 HP 7.5 HP 7.5 HP 10 HP 10 HP 15 HP 15 HP 20 HP
Max Pressure 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI 175 PSI
Displacement 20 CFM 20 CFM 20 CFM 20 CFM 30 CFM 30 CFM 30 CFM 30 CFM 40 CFM 40 CFM 60 CFM 60 CFM 80 CFM
FAD CFM @ Max PSI 15.6 CFM 15.6 CFM 15.6 CFM 15.6 CFM 20.1 CFM 20.1 CFM 20.1 CFM 20.1 CFM 28 CFM 28 CFM 45.2 CFM 45.2 CFM 58.4 CFM
Pump RPM 1,050 1,050 1,050 1,050 960 960 960 960 710 710 1,065 1,065 910
ASME Tank Capacity 80 gal 80 gal 80 gal 80 gal 80 gal 80 gal 80 gal 80 gal 120 gal 120 gal 120 gal 120 gal 120 gal
Dimensions (L x W x H) 31.5×25.2×78 in 31.5×25.2×78 in 56×23×42 in 56×23×42 in 39.3×25.2×74.8 in 39.3×25.2×74.8 in 56×23×45 in 56×23×45 in 78.3×28.7×51.2 in 49.2×30×79.3 in 78.3×28.7×51.2 in 49.2×30×79.3 in 78.3×28.7×57.5 in
Weight 480 lb 450 lb 524 lb 479 lb 584 lb 565 lb 625 lb 553 lb 836 lb 840 lb 936 lb 938 lb 1083 lb
